SHX 400kva Cummins Diesel Generator Set Low Fuel Consumption Diesel Generator
Genset Standard Configuration:
1. Powered by famous brand diesel engine and coupled with famous brand alternator;
2. Install protective device: Radiator fan and water tank radiator.
3. Control Module: Smartgen, Deepsea, ComAp;
4. Equipped with battery charger and 24Vhigh performance maintenance-free lead-acid starting batteries and connecting cables.
5. Breaker: MCCB
6. Built-in shock pad;
7. Exhaust Silencer : Externally at the top of generator set and extended outside the building;
8. Firm, durable, high-strength frame;
9. Instruction manual of generator set, test report, etc.
10. Documents for machine: Original technical documents of diesel engine and generator, instruction manual of generator set, test report, etc.
| Prime Power | 288KW/360KVA |
| Standby Power | 320KW/400KVA |
| Rated Speed | 1500rpm/1800rpm |
| Rated Voltage | 400V |
| Rated Current | 577A |
| Rated Frequency | 50Hz/60Hz |
| Model of Connection: | 3 phases 4 wires |
| Stabilized Voltage Regulation | ≤±0.5% |
| Instantaneous Voltage Regulation | ≤±15% |
| Voltage Fluctuation | ≤±0.5% |
| Voltage Recovery Time | ≤1s |
| Starting Method | 24V DC electric starting |
| Noise Level (LP7M) | ≤99 Db |
| Brand | Stamford/Farrand/Leroy-somer |
| Engine Model | as the brand needed |
| Power Factor | 0.8 |
| Governor Type | Brushless |
| Insulation Class | H |
| Winding Pitch | 2/3-(N°6) |
| Protection Grade | IP23 |
| Over-speed Capacity | 2250min-2 |
| Stabilized Voltage Regulation | ±0.5% |
| Short-circuit Current Capacity | 300%(3 multiple):10s |

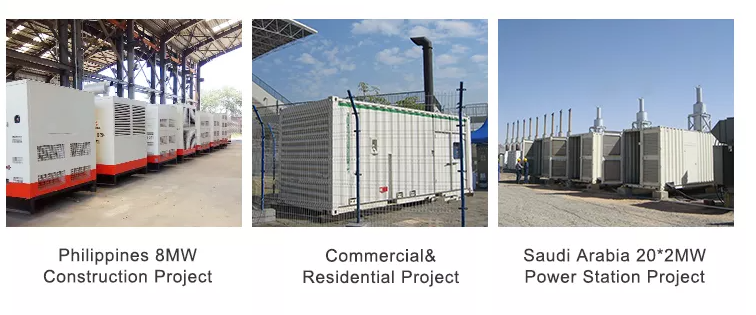

Our Project
Diesel Generator:
Pay attention to details so do more perfect
